Product Overview

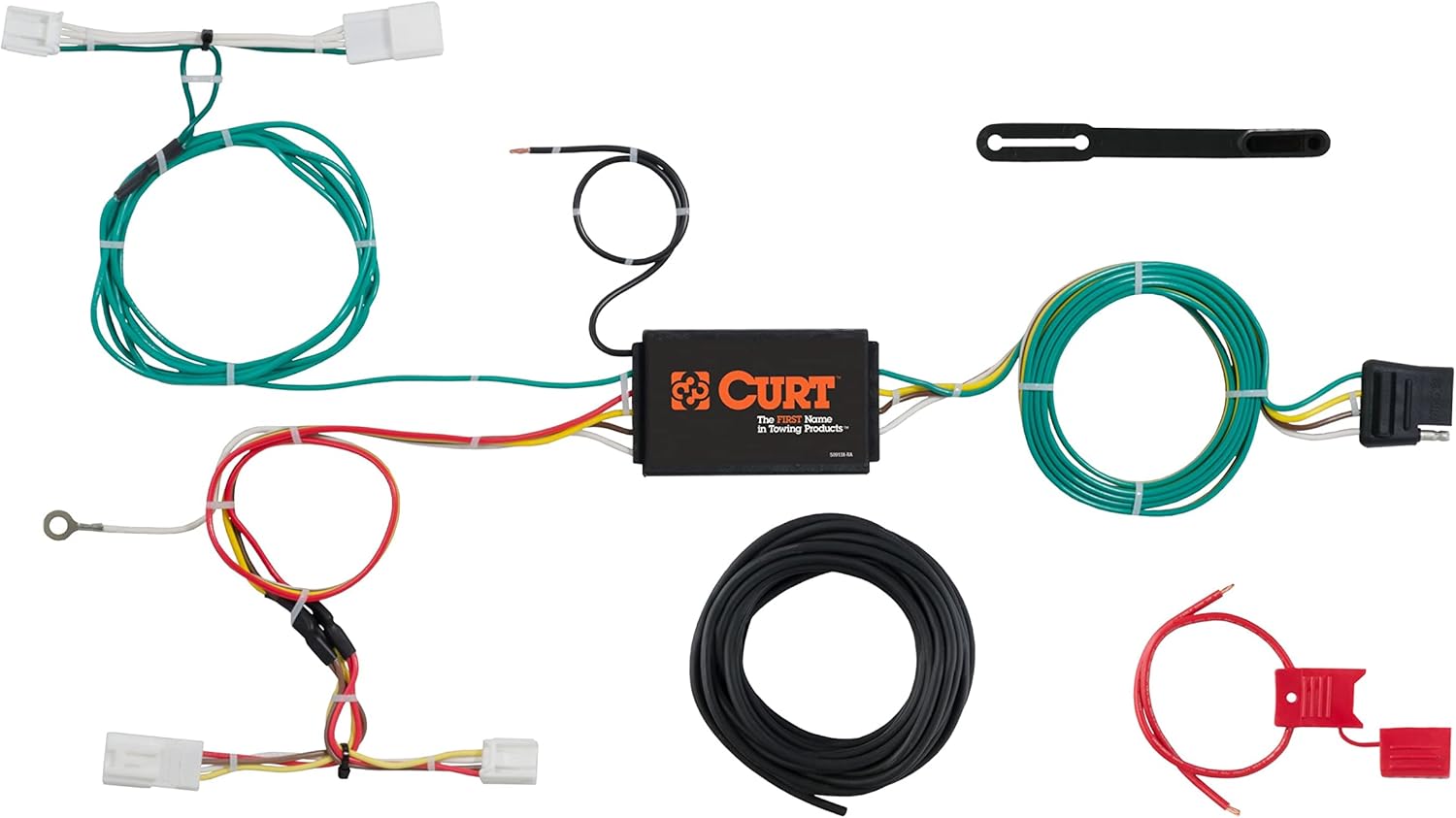

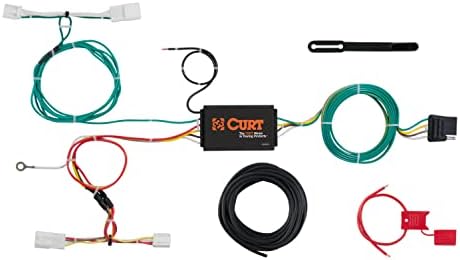

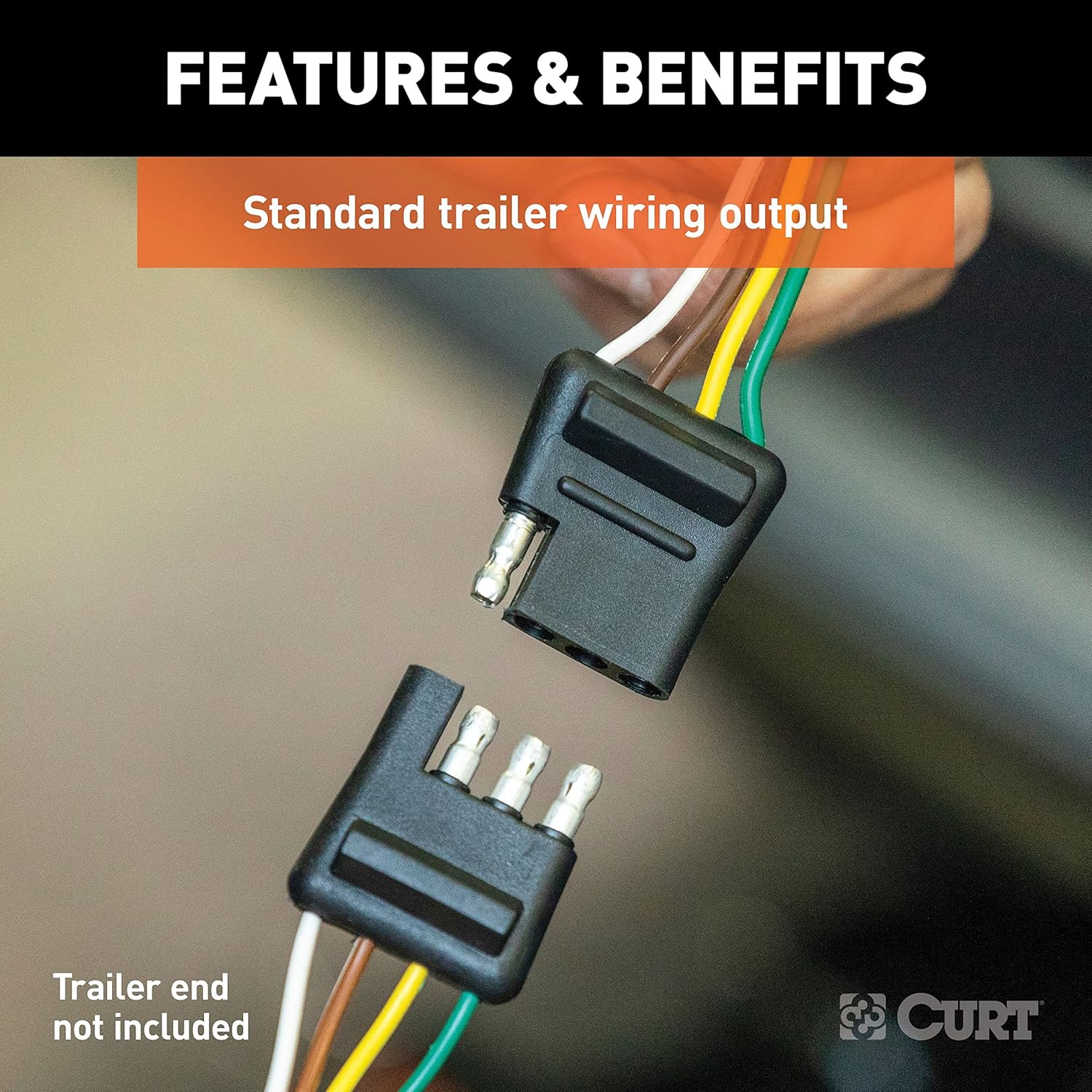

Simplify your towing experience with the Curt 56309 Custom Wiring Harness. Designed specifically for the Scion iM and Toyota Corolla series, this T-connector provides a standard 4-way flat socket to power your trailer’s signal lights without the need for complex modifications. This kit features a plug-and-play installation that integrates seamlessly with your vehicle's factory electrical system.

Key Features

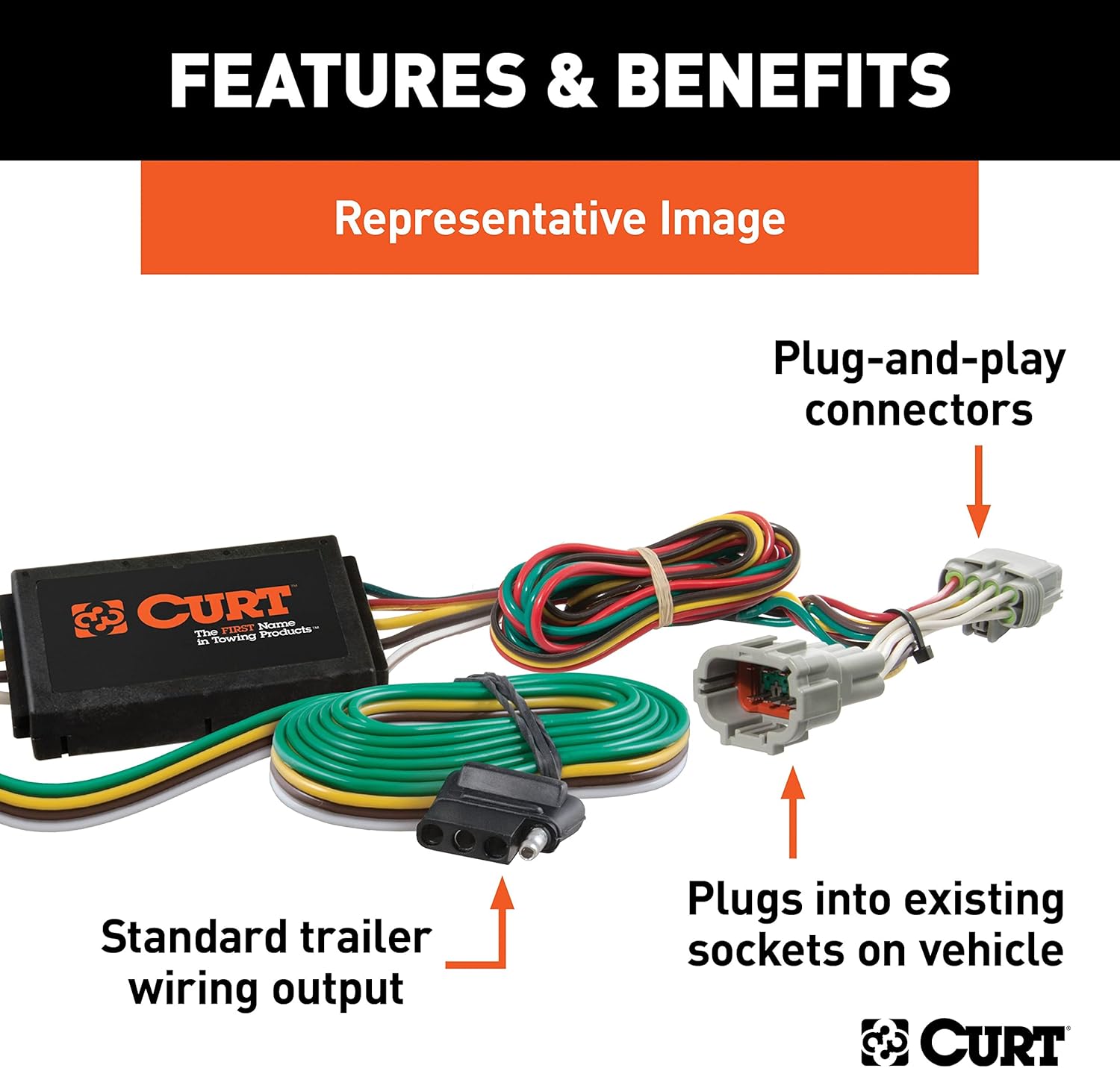

• Plug-and-Play: Connects directly to the existing OEM taillight assembly—no cutting, splicing, or soldering required.
• Advanced Protection: Includes a powered converter module with SMT (Surface Mount Technology) circuitry to protect vehicle electronics from trailer overloads.

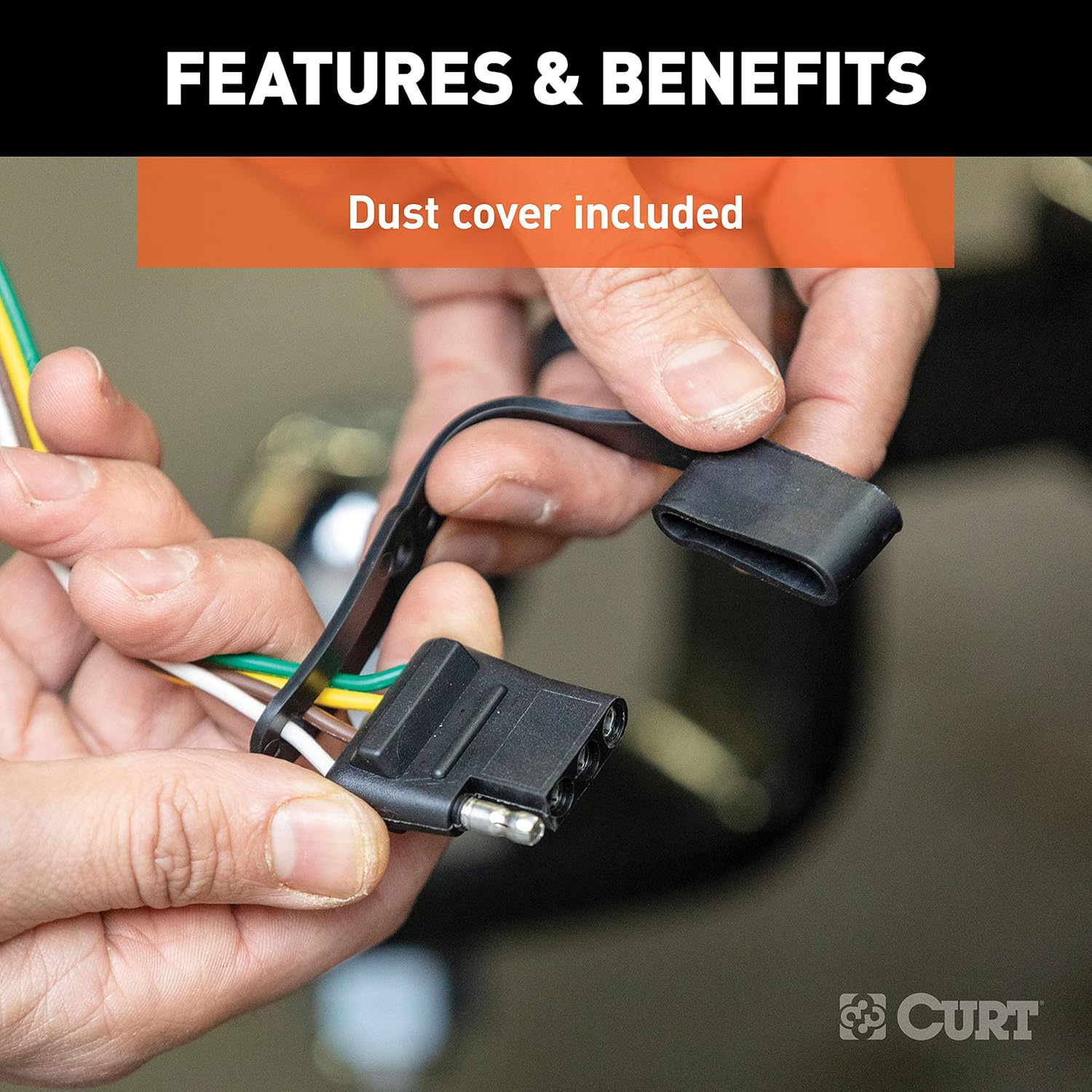

• Durable Construction: Includes a rubber dust cover to keep the 4-way flat terminal clean and corrosion-free when not in use.

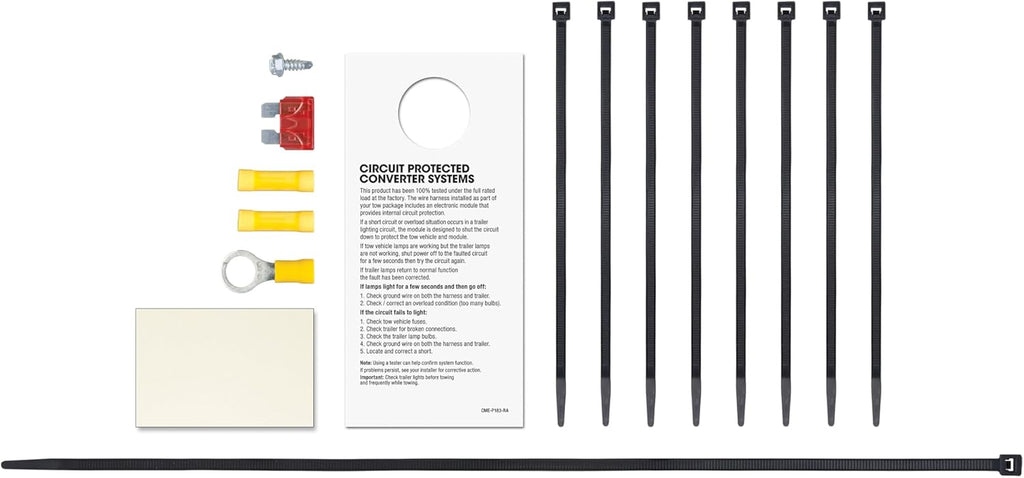

• Comprehensive Kit: Includes a fuse holder, battery connection wiring, and all necessary hardware for a complete setup.

Vehicle Compatibility

Technical Specifications

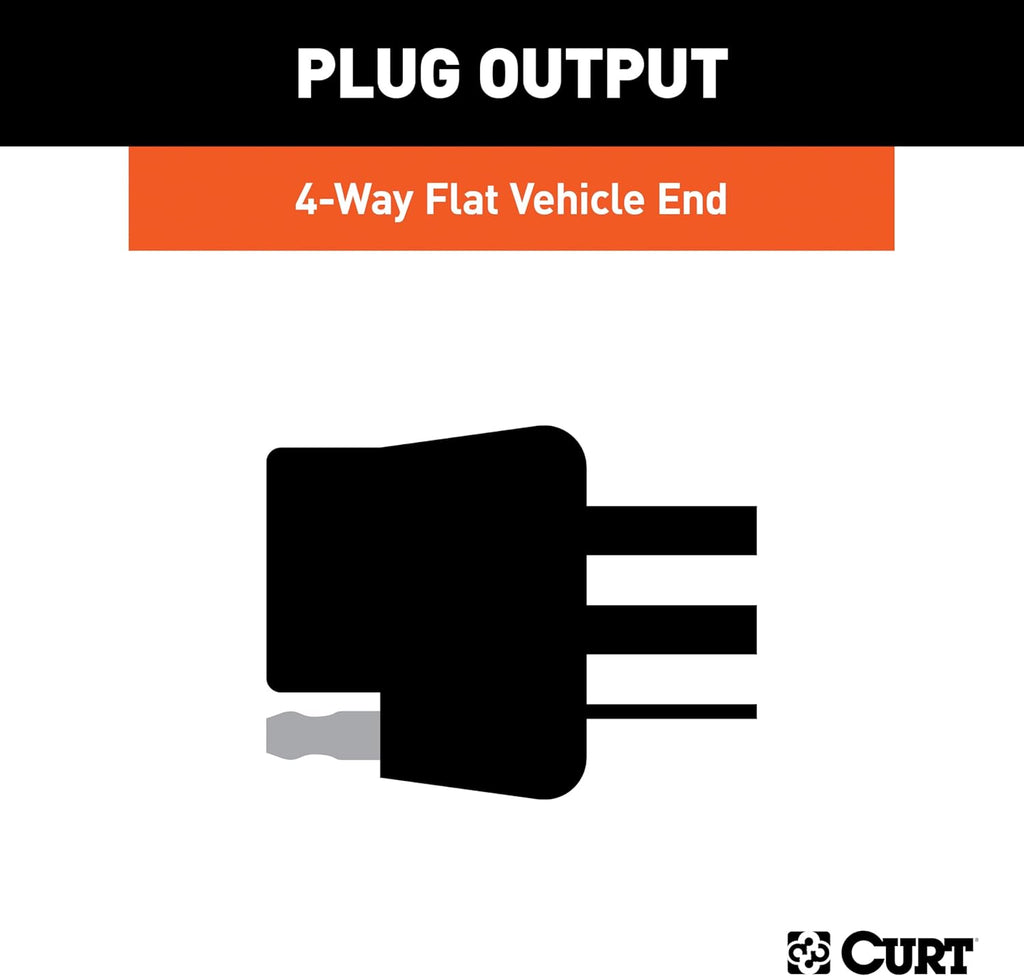

• Output Type: 4-Way Flat
• Circuit Type: Powered Converter (10-Amp Max)
• Circuit Rating: Stop/Turn: 3.0 Amps; Tail: 6.0 Amps
• Installation Location: Behind driver and passenger side taillights
